Webhooks allow you to receive automated messages to a specified URL in real-time whenever a set event occurs in Smarter Drafter. This feature enables you to automatically push submission answers or generated documents to an endpoint of your choosing, integrating seamlessly with your existing workflows and applications.

In Smarter Drafter, you can configure webhooks for two key events:

Submission Answers: Receive the data collected from a completed form submission. This includes intake form submissions.
Submission Documents: Receive the documents generated after a form submission.

When a webhook is setup for either Answers or Documents, all submissions in the tenant will be sending data to the webhook configured.

How to Configure Your Webhooks

Follow these steps to set up and manage your webhooks in Smarter Drafter:

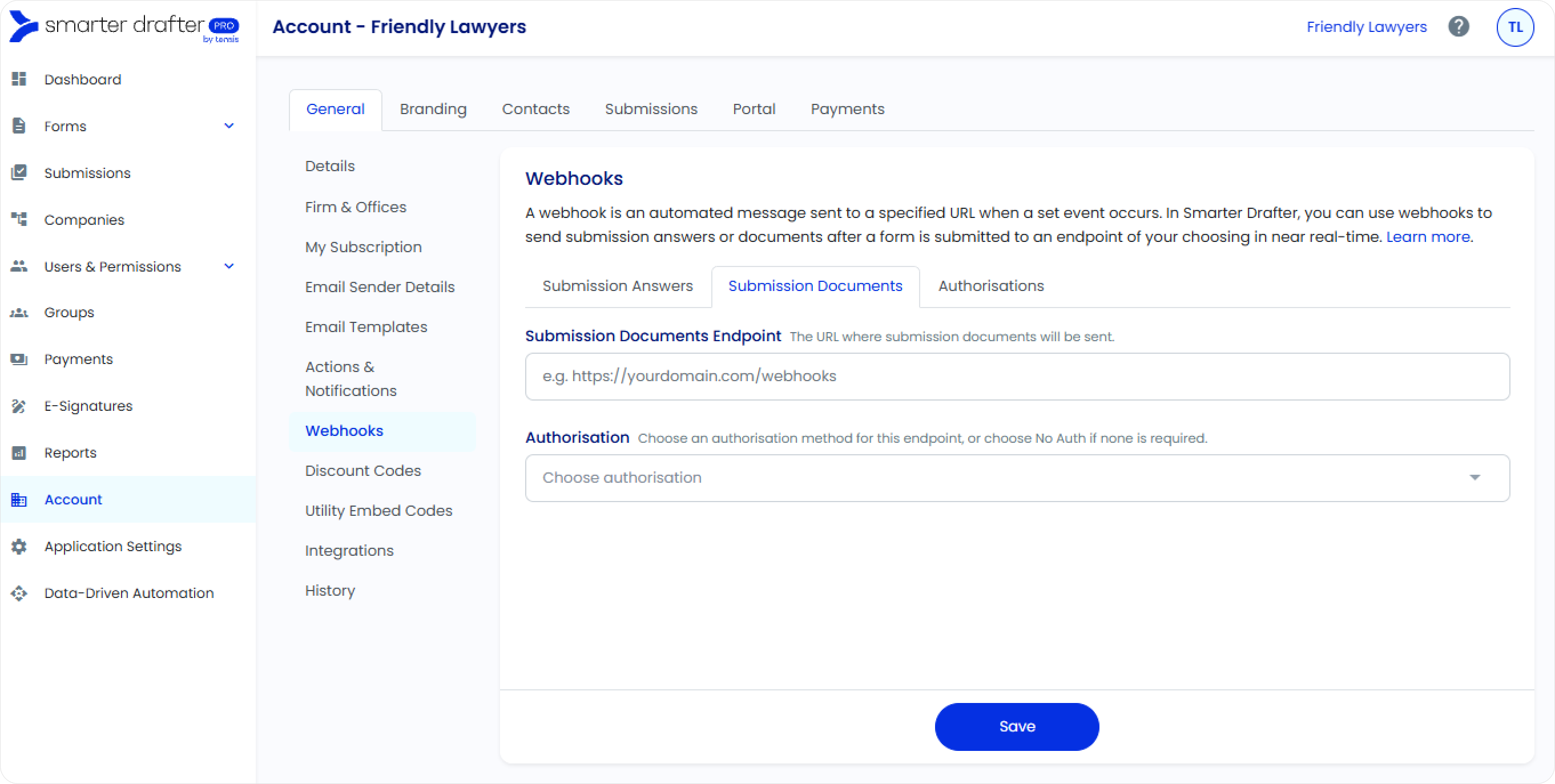

Navigate to Webhooks Settings:

In Smarter Drafter, go to the Account and under the General tab click on Webhooks.

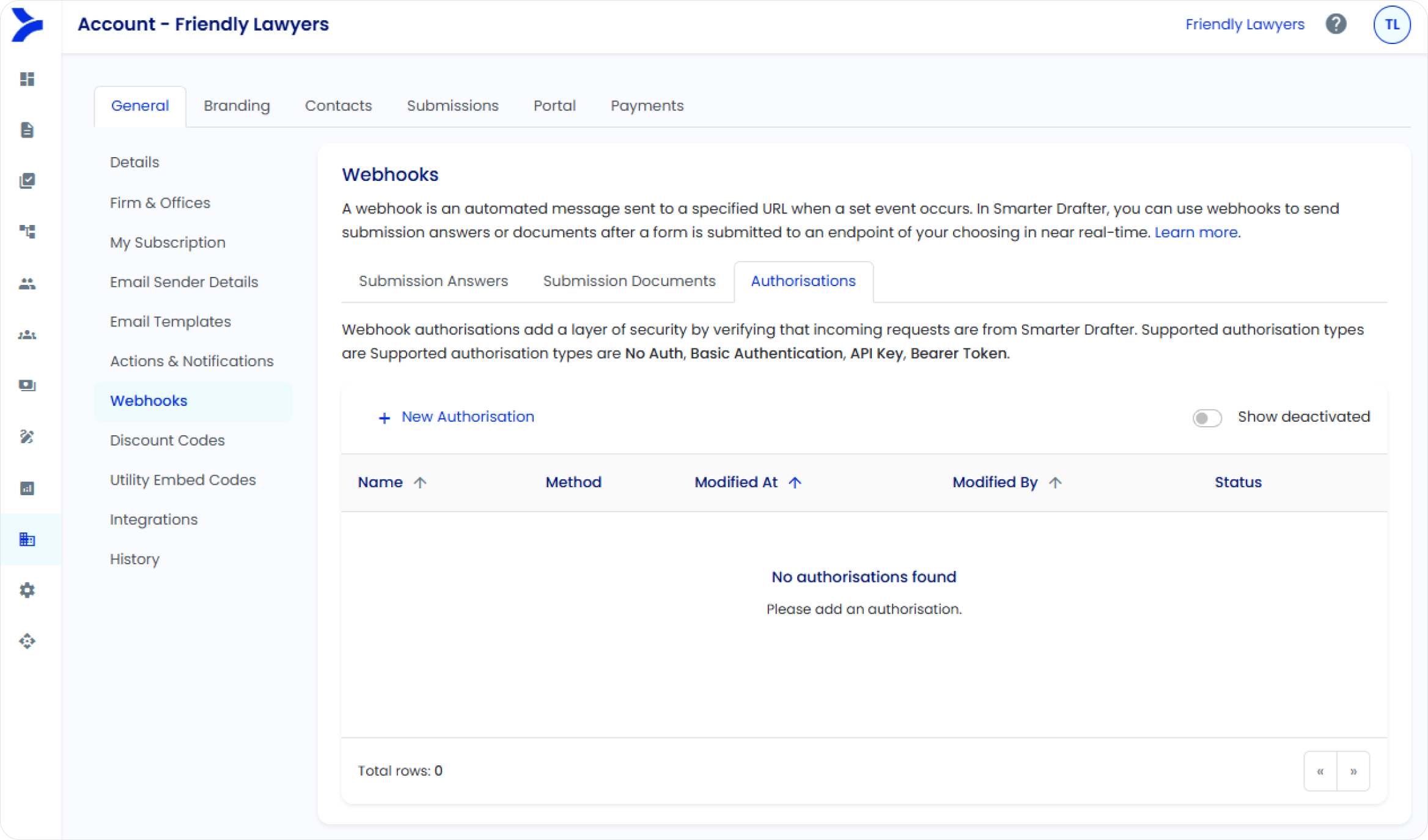

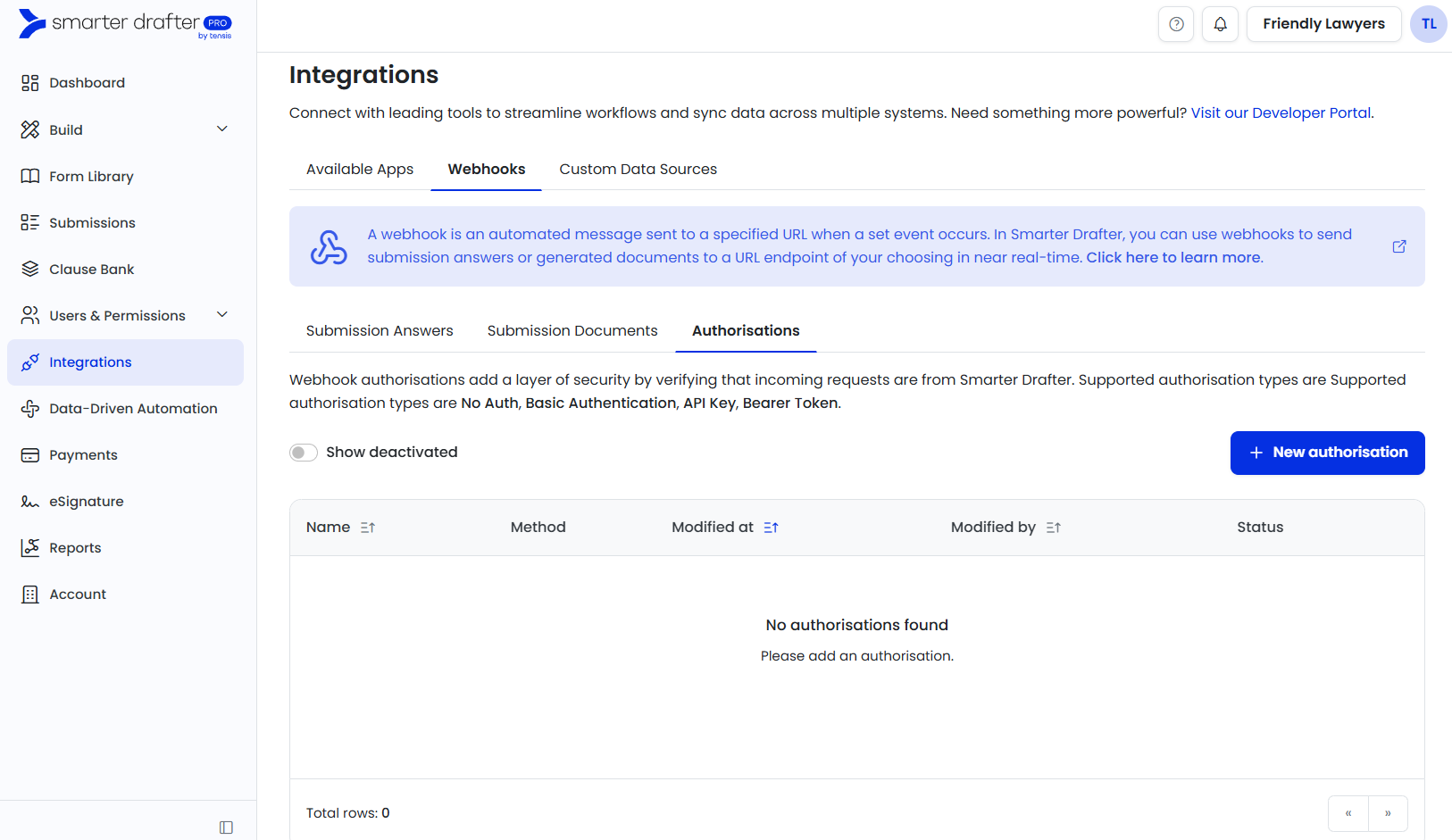

Create an Authorisation:

Authorisation is crucial for securing your webhook data and ensuring only authorised applications can receive it. Create an authorisation method via Authorisations tab, this will be used in the webhook setup from the dropdown menu that your endpoint supports. Smarter Drafter offers the following options:

No Auth: No authentication is required. Use this option with caution, primarily for testing or if your endpoint doesn't require authentication (not recommended for sensitive data).
Bearer Token: A token-based authentication where a secure token is included in the request header. You will need to provide your bearer token in the designated field.
Basic Auth: Uses a username and password for authentication, which are encoded and sent in the request header. You will need to provide your username and password.
API Key: An API key is sent as part of the request (e.g., in the header). You will need to specify the key name, header and API key value.

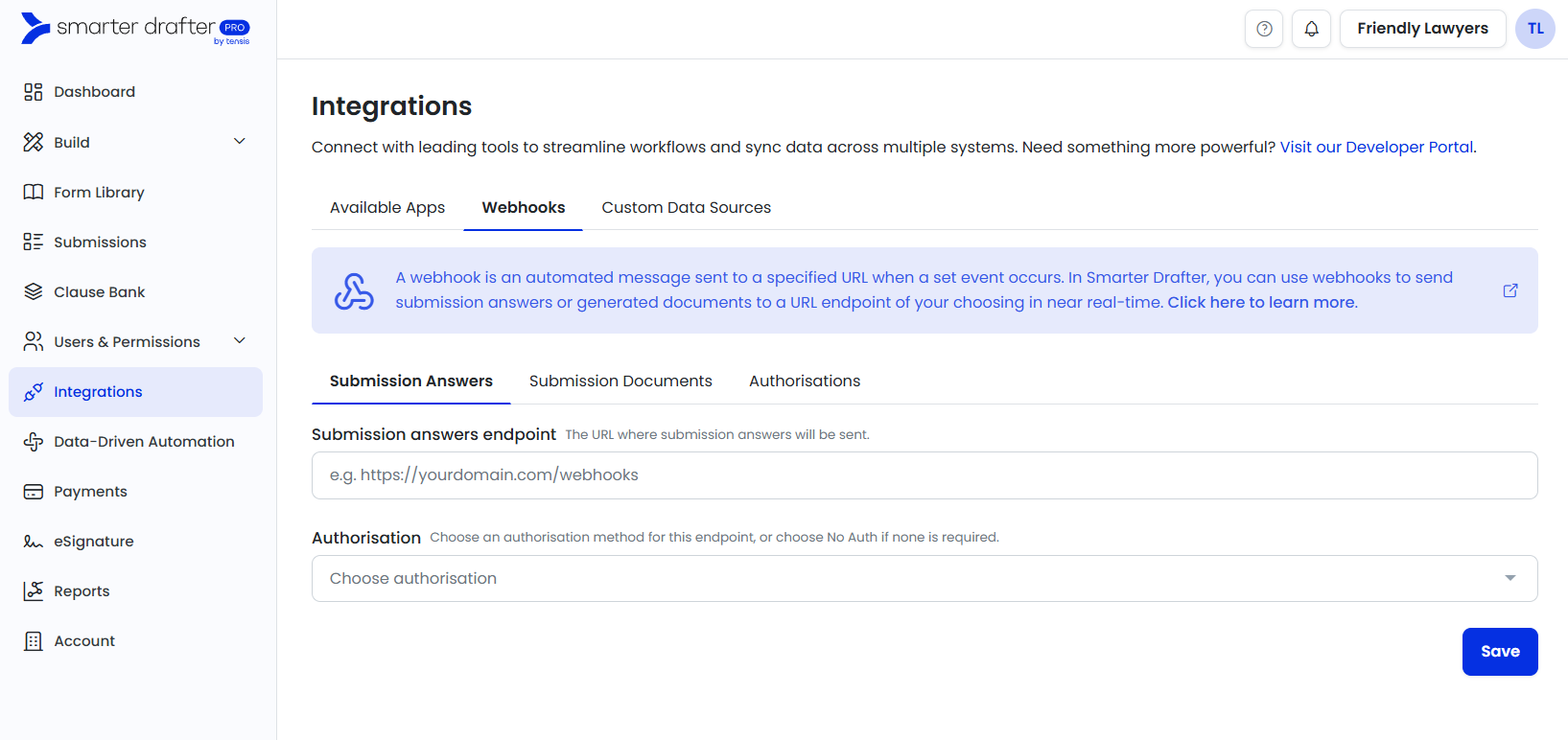

Choose Your Webhook Type:

On the Webhooks page, you will see two tabs.

Submission Answers: To configure webhooks for the data submitted in forms.
Submission Documents: To configure webhooks for the documents generated by submissions.

Click on the tab corresponding to the type of webhook you wish to set up.

Enter your endpoint URL:

In the Submission Answers Endpoint (or Submission Documents Endpoint) field, enter the URL where you want the webhook data to be sent. This URL is the destination for the automated messages from Smarter Drafter.

Select an Authorisation Method:

Choose an authorisation method from the dropdown menu that your endpoint supports.

Save Your Webhook Configuration:

Once you have entered your endpoint URL and selected/configured your authorisation method, click the Save button at the bottom of the page.

Your webhook is now active! Smarter Drafter will now send automated messages to your specified endpoint whenever a form is submitted (for Submission Answers) or a document is generated (for Submission Documents), depending on your configuration.

Test your webhook:

Start by filling in a form and monitor if the webhook passes the required information. You can navigate to Submissions page, click on the submission and also view if it was successfully sent to the webhook configured.

Where a submission documents webhook is configured, ensure the form has a document template setup.

Webhook Structure

Answers webhook

Submission answers webhook will send properties for both intake and non-intake forms when submitted from Smarter Drafter. Where values are not present, it will be left empty.

{
	submissionGuid: Guid
	recipientSubmissionGuid: Guid
	name: string
	userEmailAddress: string
	userFullName: string
	userPhoneNumber: string
	formName: string
	formId: number
	timestamp: datetime
	externalId: string
	dataSource: string
	matterExternalId: string
	matterNumber: string
	recipient: {
		firstName: string
		surname: string
		emailAddress: string
		phoneNumber: string
		recipientType: string
		dataSource: string
		recordId: number
		contactId: number
		externalId: string
	}
	answers: [{
		question: string
		answer: string
		ref: string
		alias: string
		recordTypeName: string
		isSection: boolean
		sectionRef: string
		recordTypeApiIdentifier: string
		recordId: number
		recordExternalId: string
	}]
}

Parameter	Description
submissionGuid or submissionID	GUID of the current submission
recipientSubmissionGuid	GUID of an intake; not visible if the form is not the parent of an intake.
name	Refers to the submission name.
userEmailAddress	Email of the user who created the intake (not the recipient).
userFullName	Name of the user who created the intake (not the recipient).
userPhoneNumber	Phone number of the user who created the intake; not visible if not filled out.
formName	Name of the form used for the submission.
formId	Unique identifier for the form.
timestamp	When the submission was completed.
externalId	External ID for submission if generated via API; not visible otherwise.
dataSource	Matter source of the submission; not visible if a matter was not used.
matterExternalId	Not visible if a matter was not used or if the source is local SD (no external ID).
matterNumber	PMS number or matter name; not visible if no matter was used.
recipient	Not visible if the submission is not an intake.
recipient.firstName	First name of the recipient.
recipient.surname	Surname of the recipient.
recipient.emailAddress	Email address of the recipient.
recipient.phoneNumber	Only visible if the intake originated from embed code.
recipient.recipientType	Contact or Record; not visible if not selected from the dropdown.
recipient.dataSource	Source of the record/contact; not visible if not selected from dropdown.
recipient.recordId	Not visible if recipient is a contact or none was selected.
recipient.contactId	Not visible if recipient is a record or none was selected.
recipient.externalId	Not visible if source is not API/PMS or no recipient selected.
answers	Array of answers for the submission (includes sections and fields).
answer.question	The text of the question.
answer.answer	The submitted value; not visible if it's a section or optional/unanswered field.
answer.ref	The reference for the section/field; can be multi-part with special characters.
answer.alias	The alias used for the section/field; not visible if no alias exists.
answer.recordTypeName	Name for a mapped record type; not visible if no mapping exists.
answer.isSection	Boolean indicating if the answer is a section.
answer.sectionRef	Ref of the parent section; can be multi-part or separated by ~ for repeats.
answer.recordTypeApiIdentifier	API identifier of mapped record type; not visible if no mapping exists.
answer.recordId	Record ID used to populate the answer; not visible if record was not used.
answer.recordExternalId	External ID of the record if from an API; not visible otherwise.

Documents webhook

Documents webhook will send the generated file submission along with the below details.

Parameter	Description
submissionId	Unique ID for the submissions from Smarter Drafter. Note that this is not the unique identifier for the form used for the submission.
submissionName	Name the submitter gave the submission.
fileNumber	Count of the file in the submission.
fileCount	Total file count for the submission.
fileName	Name of the document template as it appears in the form.
iManageFilePath	Full file path of the document saved in iManage.
externalId	External identifier included in the deep link URL.
matterId	Matter external id if selected when creating a document

Note: where there are multiple documents generated from a single submission, separate webhook posts will be sent.
